kmyled.geloLED High Bay Light
Located：LED High Bay Light
100W-250W UFO LED HighBay
Model:KW-GS100W-C Brand:
Product introduction
UFO LED high bay lightWatt:100W 150W 200W 250W
LED Chips:PHILLIPS 130lm/W
IP Raiting:IP65
Applications: FACTORIES, WAREHOUSES, FOOD PRODUCTION AREAS,WORKSHOPS,SPORTS ARENASContact manufacturer
Technical Parameter Features Replacement Package Applications
| Parameter | |||||
|
Model
|
Power(W)
|
LM(±10%)
|
Size(mm)
|
Weight
|
|
| KW-GS100W-C | 100 | 10000 | 310X160 | 2KG | |
|
KW-GS150W-C
|
150
|
15000
|
360X200
|
3.8KG
|
|
|
KW-GS200W-C
|
200
|
20000
|
410X255
|
5.8KG
|
|
| KW-GS250W-C | 250 | 25000 | 410X255 | 5.8KG | |
|
|
|||||
|
Input Voltage
|
AC100V～277V
|
||||
|
Frequency Range
|
50Hz～60Hz
|
||||
|
Total Harmonic Distortion
|
≤ 9 %
|
||||
|
Power Factor
|
＞0.98
|
||||
|
Power Efficiency
|
＞87 %
|
||||
|
Working Voltage
|
DC30～36V
|
||||
|
Color Rendering Index
|
Ra＞80
|
||||
|
IP Grade
|
IP65
|
||||
|
Material
|
Aluminum Alloy
|
||||
|
LED Chips
|
PHILLIPS 3030
|
||||
|
Led Luminous Efficiency
|
130Lm /W
|
||||
|
lamps Efficiency
|
＞91 %
|
||||
|
Illuminance Uniformity
|
＞0.6
|
||||
|
Color Temperature
|
2700-7000K
|
||||
|
Light emitting angle
|
60° 90° 120°
|
||||
|
Junction Temperature
|
≤80℃
|
||||
|
Working Temperature
|
-40℃ ～ +55℃
|
||||
|
Storage Temperature
|
-25℃ ～ +65℃
|
||||
|
Working Lifespan
|
50000H
|
||||
1.Energy saving, low carbon and long life,
2.Good color rendering, response speed quickly.
3.130 Lm/Watt high efficiency PHILLIPS Chips.
4.High thermal conductivity aluminum fin design better heat dissipation
5.Dimmable (DALI / 0-10V / TRIAC) or non dimmable optional
6.IES files available upon request.
| Product Description | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Volume | Gross weight |
| 100W UFO LED High Bay Light | 1 | 38*38*18cm | 0.025cbm | 5kg |
| 150W UFO LED High Bay Light | 1 | 44*44*19cm | 0.039cbm | 8kg |
| 200W/250W UFO LED High Bay Light | 1 | 48x48x26cm | 0.048cbm | 10kg |

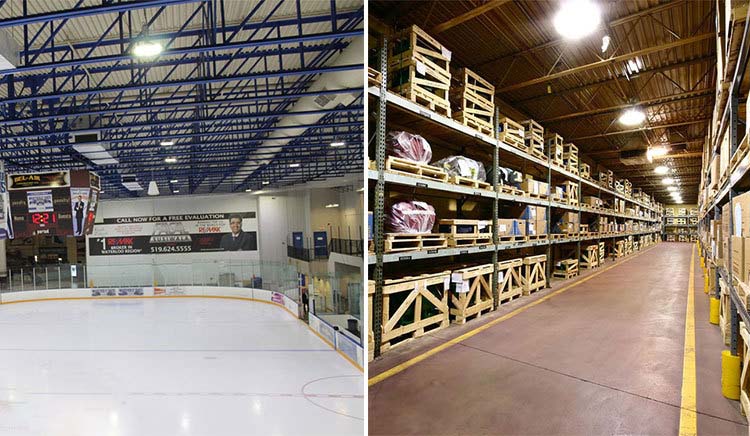

FACTORIES, WAREHOUSES, FOOD PRODUCTION AREAS,WORKSHOPS,SPORTS ARENAS
